TPM Bushing Full Length Die Set

TPM reloading tools are machined on high performance CNC lathes. The bodies are in steel treated with Chrome Molybdenum guaranteeing very high hardness. In order to maintain excellent concentricity, the tools are not heat treated after machining.

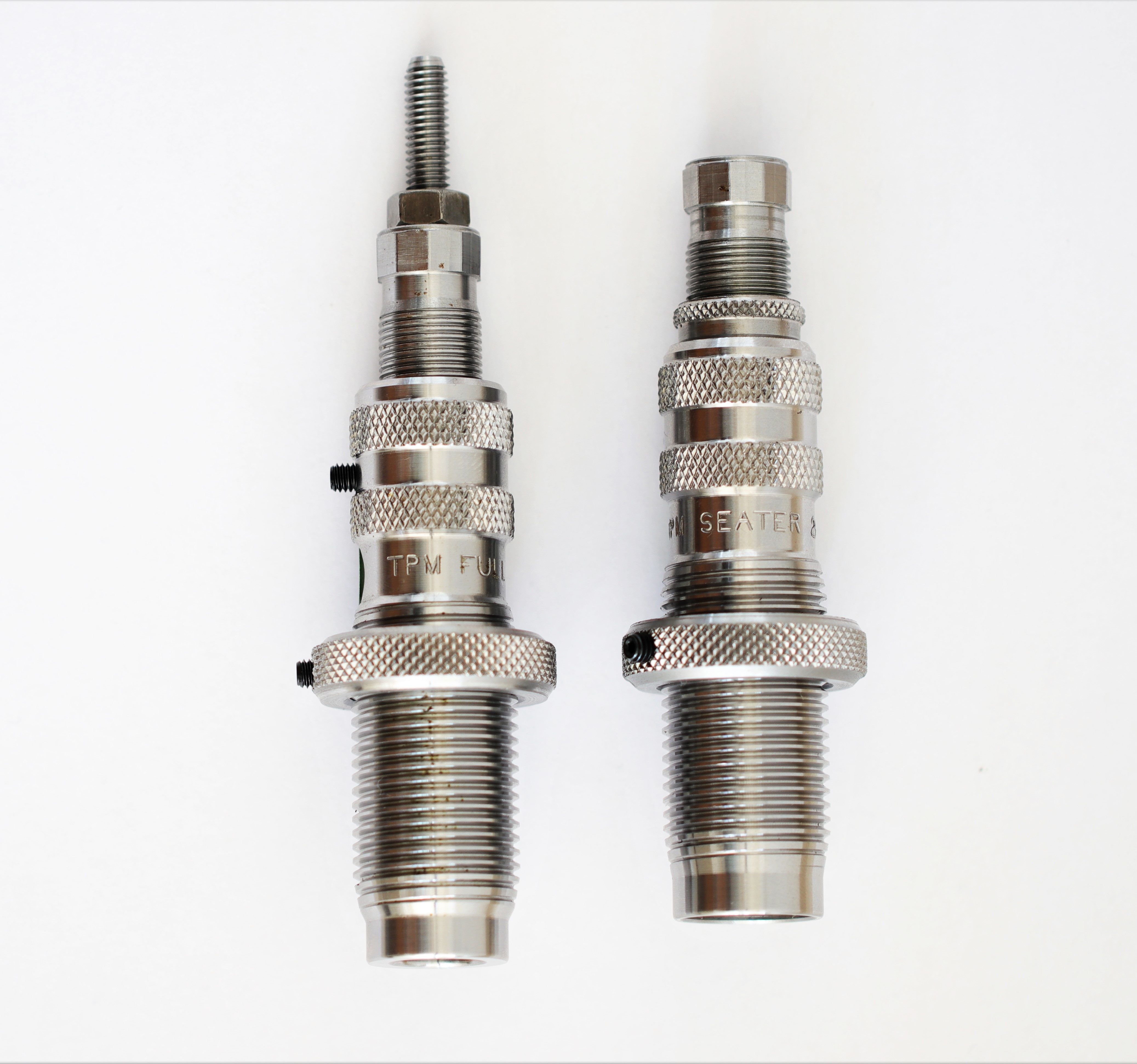

This 2-tool set consists of a Full bushing recalibrator tool and a ball seat.

The Full bushing recalibrator acts on the body and the shoulder of the case as well as on the collar via the Bushing. A defusing needle is used to remove the primer.

The seat is fitted with a 1 mm pitch threaded plug fitted with an engraved ten-point. This device allows a very precise adjustment of the insertion of the ball.

The defuse rods can be fitted with an expander (optional).

Warning ! Bushing not included. You can use standard bushing like Redding.

Small reminder on the choice of your bushing. Measure the diameter of the neck of your holster with a mounted projectile. Subtract 0.002 to 0.003 from this inch value and you will get the bushing value to use. For example, diameter of the snare with projectile mounted 8.53 mm divided by 25.4 to have it in inches, i.e. 0.336. At this value, we remove 0.003 or 0.336 - 0.003 = 0.333. The bushing to use is 0.333.
