Angle Mounted ABR

Przejdź do sekcji Opinie

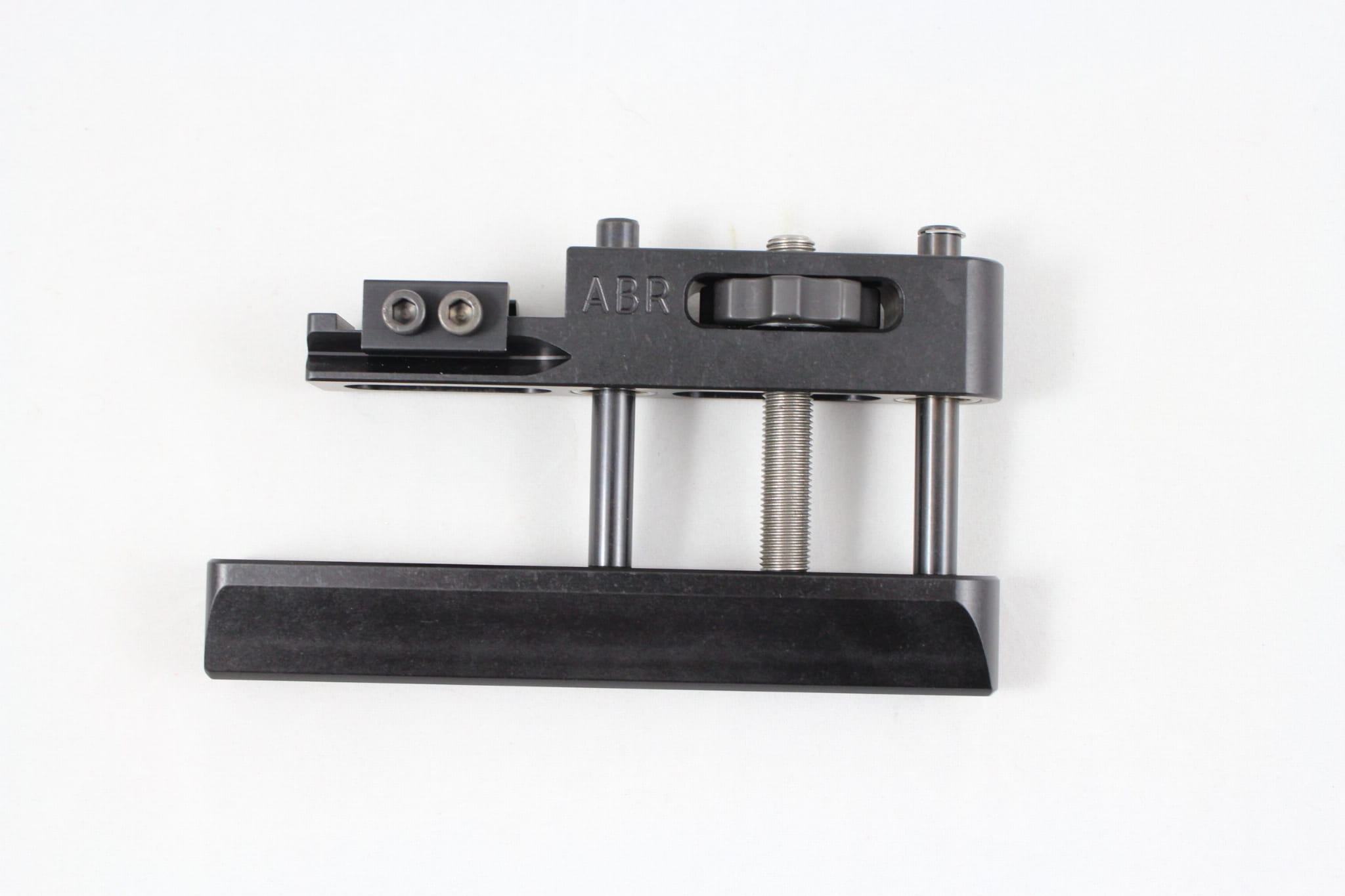

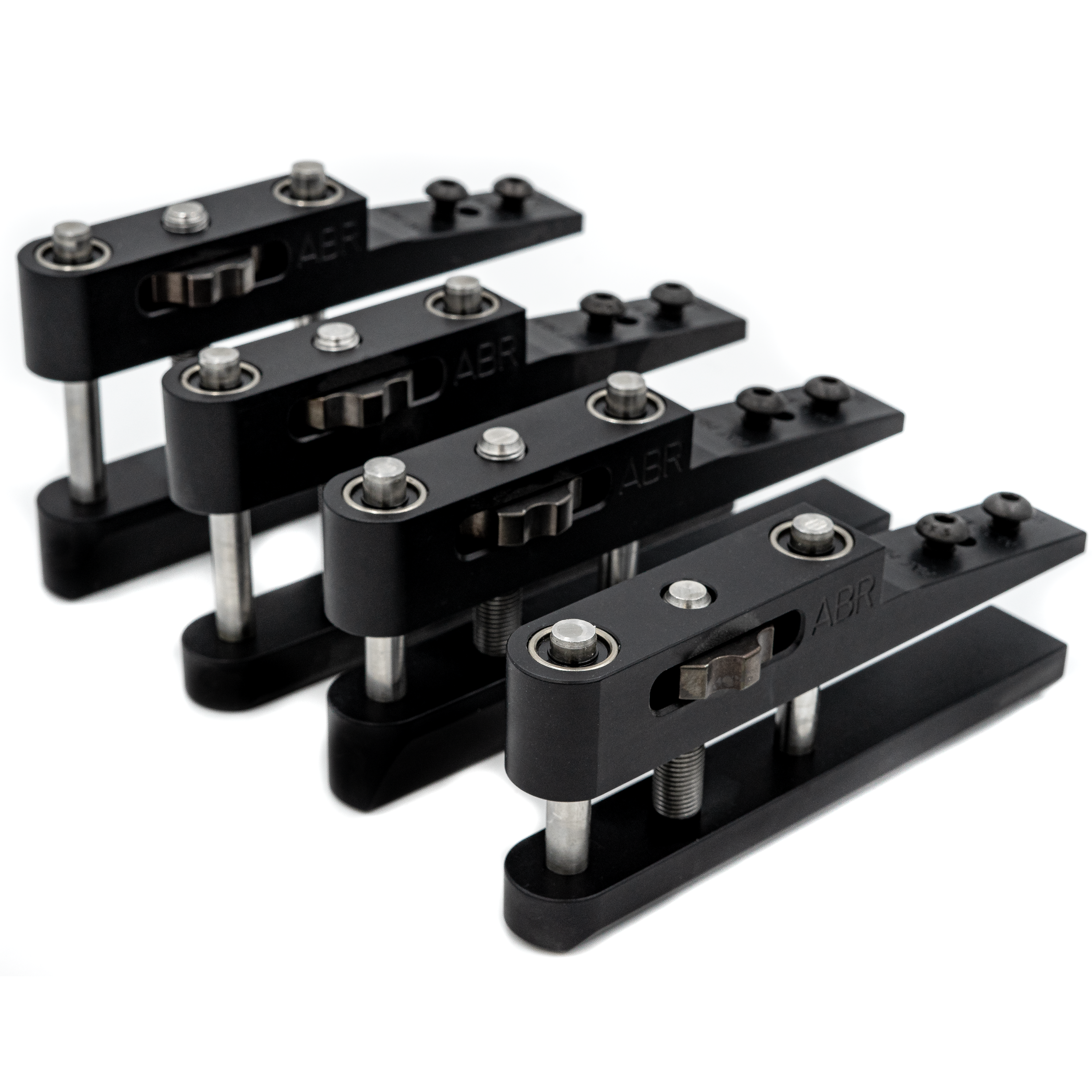

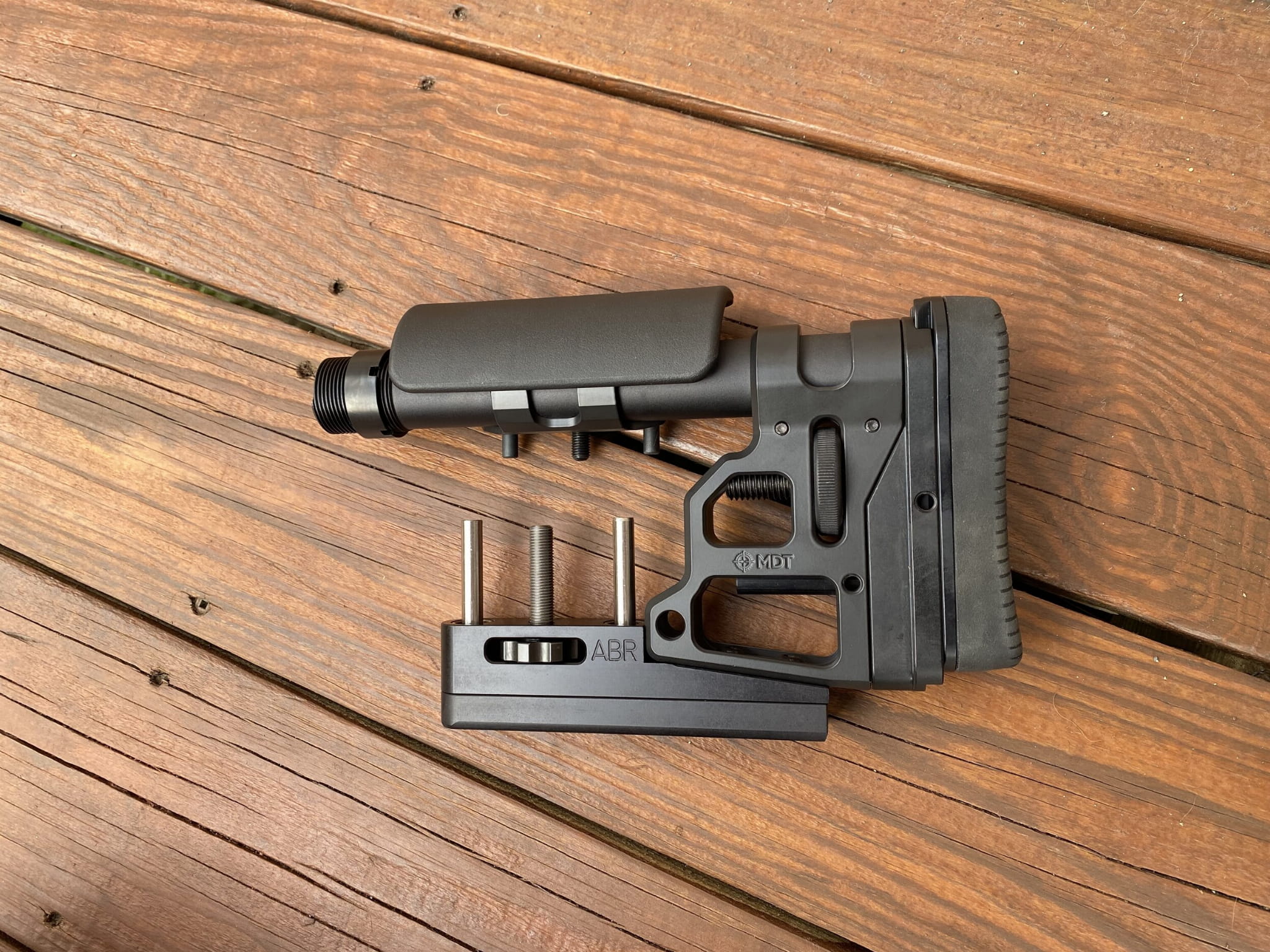

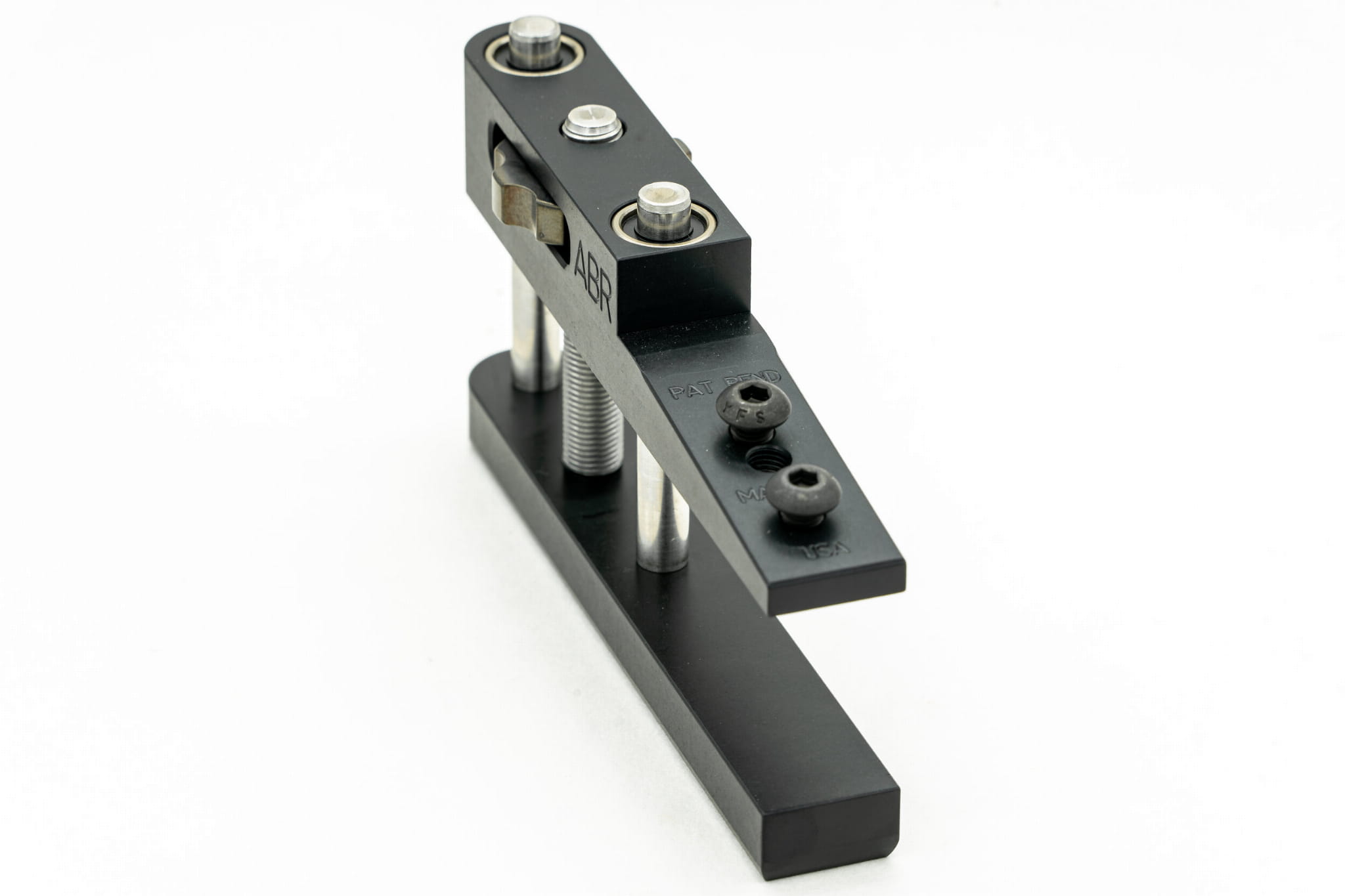

The Angle Mounted Adjustable Bag Rider (Patented) is designed to bolt directly to the bottom of the MDT stocks (and some Savage) with supplied bolts. There must be a mounting SLOT in the bottom. Two lower rider options are available - the V and ELR. The ELR base is .850” wide. The ‘Bag Selection’ page goes over the lower rider differences. The ABR provides rock solid stability, straight tracking and vertical adjustment. The ABRs are CNC machined from USA made 6061 Alum, Anodized Class II Black and weighs 12-14 oz . There are four mounting holes providing the options to cover stock variations - select the two mounting holes farthest from each other. A 5/32 hex wrench will be needed. The ABR provides about .95” of travel for the short dowel and 1.48” for the long dowel. Older models stocks ‘without the slot’ will need machining to mount the 1/4” bolts.

A new ‘Quick adjustment’ thread option (Coarse thread) is available for PRS, Hunting - use requires Hardened Dowels

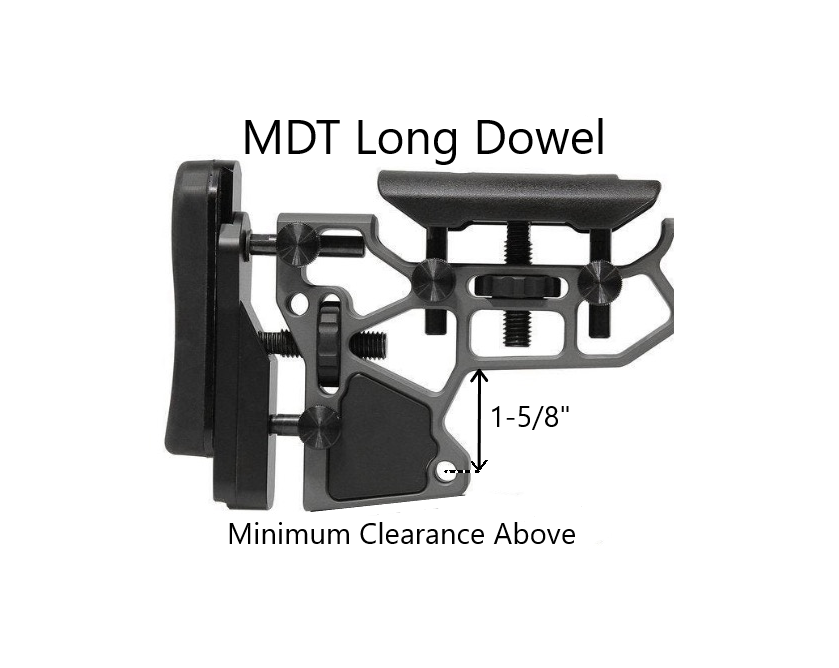

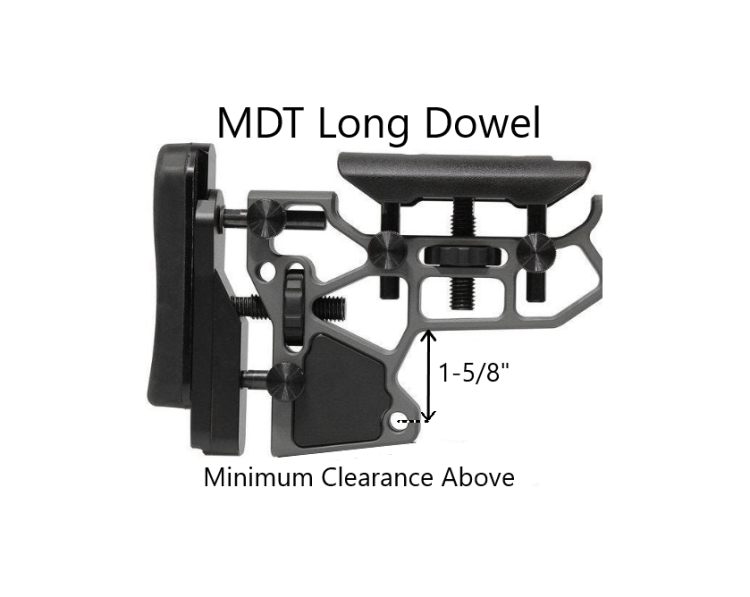

If you do not see your rear stock listed below there are Two pics that show the measurements needed to verify if the stock will accept the long dowels. If you are unsure please use the contact button and send picture of the rear stock.

DOES NOT FIT THE NEW ACC ELITE with lower support bar that attaches to the grip (even if you remove the bar)

Przejdź do pełnego opisu

1 700,00 zł

Wybierz wariant produktu:

Poszczególne warianty mogą różnić się ceną

Select an Option

Wybierz

AM-Short-ELR-Hardened

AM-Short-V-Hardened

Brak

AM-Long-ELR-Hardened

Brak

AM-Long-V-Hardened

Brak

Ilość

szt.

Dostępność:

na wyczerpaniu

Czas wysyłki: 2 dni

Kod produktu: AM-ABR

Opis

Bolt On application and Dowel Length:

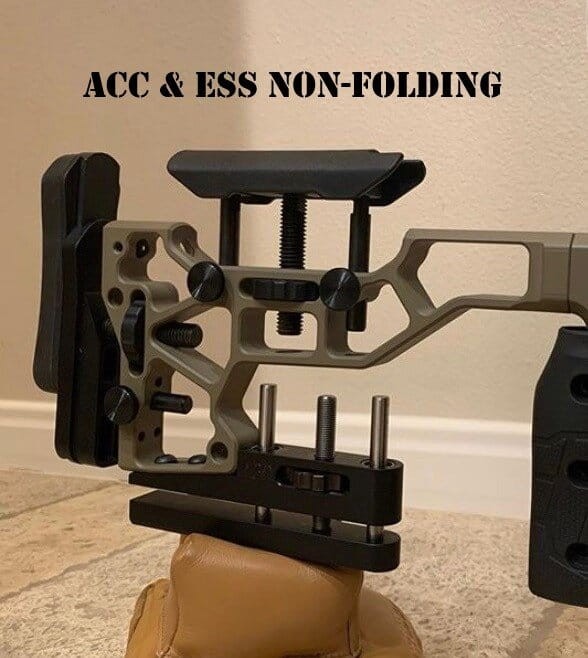

ACC - Non-folding -Long Dowels

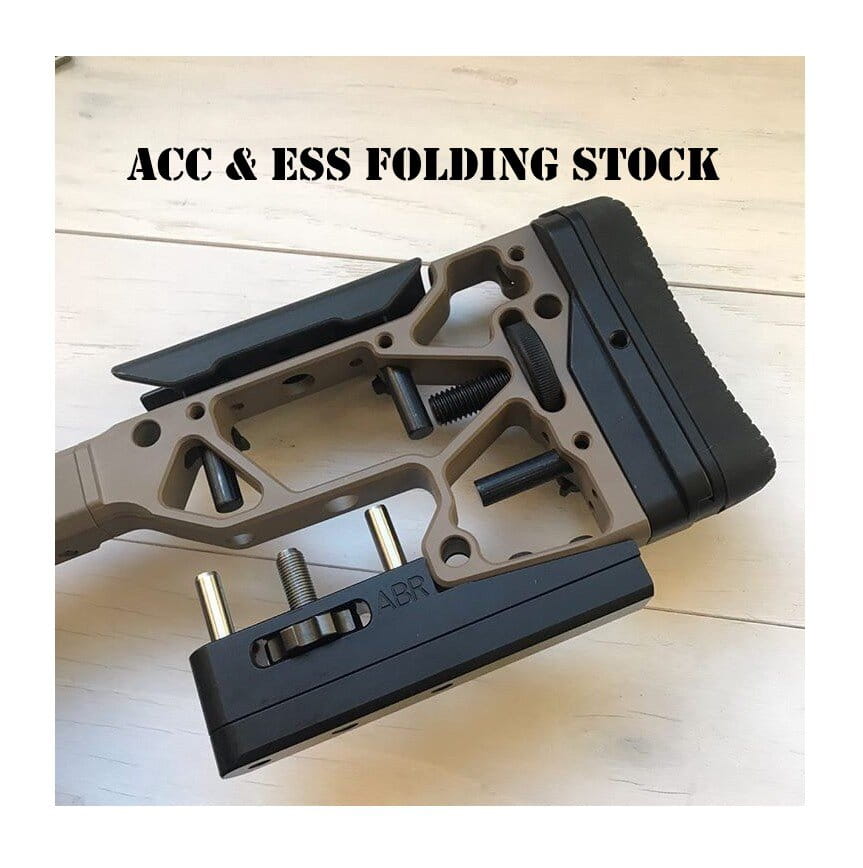

ACC - Folding stock- Short Dowels
ESS - Non-folding - Long - Dowels
ESS - Folding stock - Short Dowels
SRS - Skeleton Rifle Stock - Short Dowels
LSS-XL - Short Dowels
SRS-XF - Short Dowels
SCS-Lite - Long Dowels (The shorter tube length may require the Folding Stock Adapter to increase LOP- or a longer tube)
SCS - Long Dowels (The shorter tube length may require the Folding Stock Adapter to increase LOP- or a longer tube)
Savage Impulse Elite Precision - Long Dowels
Colt CBX - Long Dowels
Faxon FX7 - Short Dowels
HTI Milano - using MDT rear stock
Modification Required:
Savage B22 & B17 - Long Dowels - Minor modifications are necessary as M-lok nuts and bolts will be required and the counter sinking of the heads on the bottom of the ABR will be required for a flush mount. (See Picture)

Caliber Restrictions:

.338 and smaller calibers will use the Standard Dowels
.33XC and larger need the Hardened Dowels
PRS use requires Hardened Dowels

FAQ’s

“Which Option do I choose?”
- Angle Mounted ABR top section is the same for all. Only the dowel & stud lengths are different.
“Which lower rider (ELR or V) do I choose?”
- The ELR is .85” wide and .5” tall the V bottom fits a 2 stitch bag. The ‘Bag Selection’ page goes over the rider shapes in detail.

  “Which DOWEL Material do I choose?”
- .338 and smaller calibers will use the Standard Dowels
- .33XC and larger needs the Hardened Dowels
- PRS requires the Hardened dowels

  Which Thumb Wheel thread do I choose?
- Fine Thread (standard) - bench rest, ELR, Fclass,
- Coarse Thread - PRS and timed events when faster movement is needed

  Which Adjustable Grip is suggested?
- The Vertical Adjustable Grip provides the maximum spacing behind the grip

Rear weight will need to be modified to clear the bolt heads - a dremel can be used (see pic)

Please note that this product does not fit anything other than the MDT / Savage with a MOUNTING SLOT.

Non-Affiliation Disclaimer. We are not affiliated, associated, authorized, endorsed by, or in any way officially connected with the Modular Driven Technologies or Savage brands .
